Product Specification
| Brand | Maxxx Pamma |
| Temperature Range | 200 Degree To 480 Degree |
| Weight | 6.6 kg |
| Outer Carton Size | 580 X 310 X 650 mm |
| Gross Weight | 17.80 kg/Ctn |
| Tip To Ground Resistance | Less Than 2 Ohm |
| Size | 34 X 34.5 X 22.5 cm |
| Model Number | 909 |
| Tip To Found Potential | Less Than 2 Mv |
Product details
Product Description

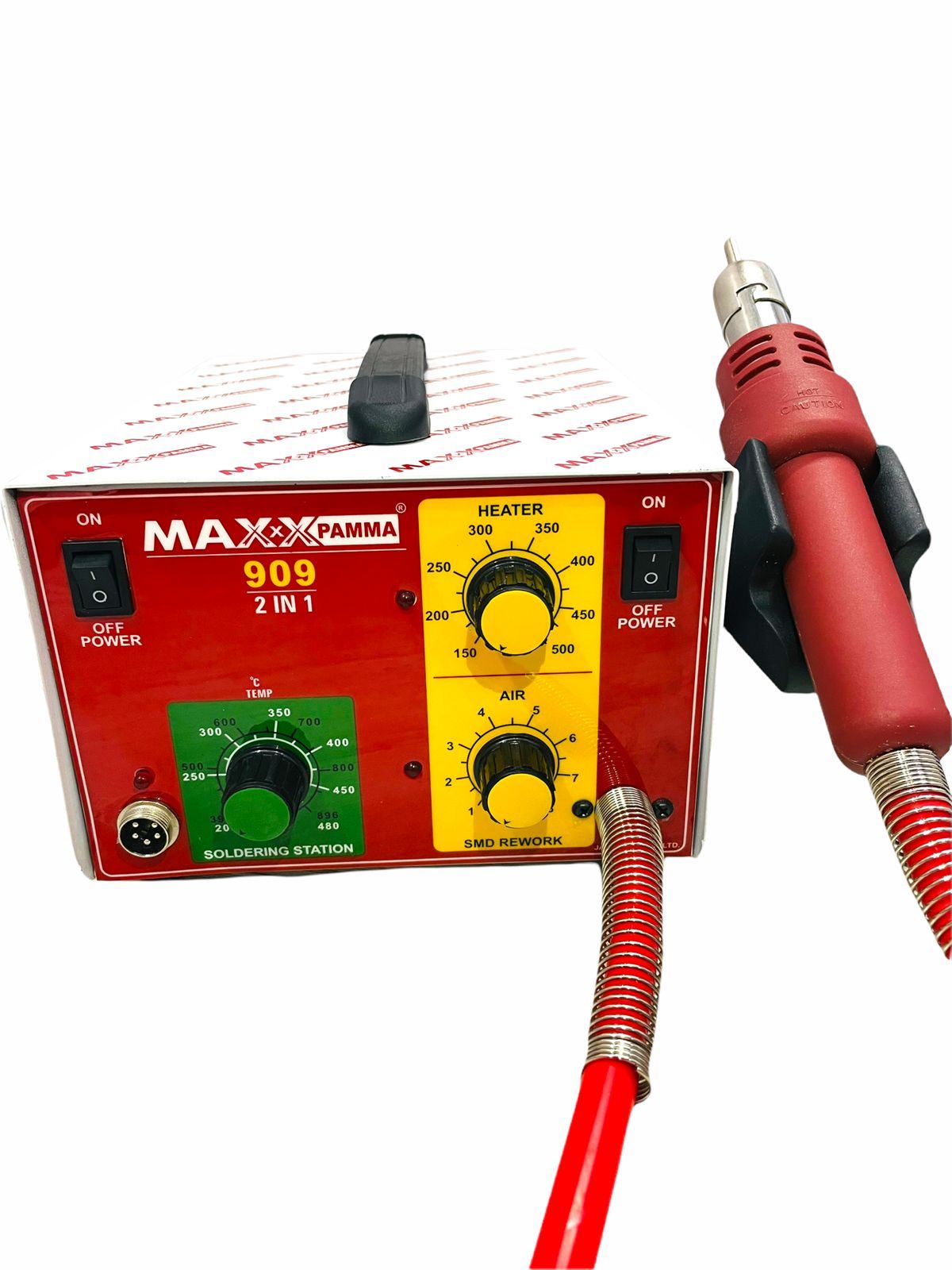

- Original Maxx pamma Smd Rework Station
- Brushless Fan
- 2 In 1 Rework Station, Bga Rework Station + Soldering Iron
- With Long Life Air Blower
- Power Consumption 270W
- Temperature Range Is 100 Degree C To 420 Degree C
- Power Consumption Of Soldering Iron Is 50W
Usage:
- Fits Most Of Smd, Such As Soic,Chip,Qfp,Plcc,Bga Etc
- It Is Suitable To Hot Shrink,Drying,Remove Lacquer And Mucosity,Thaw,Preheating,Disinfect And So On.
- Characteristics Of Rework Station –
- Prevent Static Electric And Creepage To Damage The Pcb
- Don’t Need To Touch The Pcb,Which Can Avoid Element Moving And Heating Impaction.
- Use Inlet Heating Element,The Type Of Heating Element And Nozzle Is Same As The International.
- Delay To Blow Cool Airflow When Turn The Power Switch Off, It Can Protect The Unit.
