Sale!

MECHANIC D – 75T PRO MASTER EDITION MICROSCOPE

Original price was: ₹19,999.00.Current price is: ₹17,249.00.

Description

Mechanic D75t Pro Master Edition Microscope



MECHANIC D75T-PRO MASTER EDITION TRINOCULAR STEREO MICROSCOPE WITH HEAVY PILLAR FLAT BASE

Features:

* 7X-50X zoom magnification power with crisp sharp images
* Widefield of view* Sturdy all-metal pillar stand
* High resolution with great flatness and contrast, giving sharp and clear images
* Sharp stereo erect images with a wide field of view
* Crystal clear original true-co microscope images
* Large working distance Sturdy all-metal table stand
* Accurate alignment reduces eye strain for longer periods of viewing
* Full optical glass elements
* Adjustable interpupillary distance
* Adjustable bracket, lifting range:50mm; easy to operate
* Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
* Eyepiece: WF10X/25mm High Eyepiece

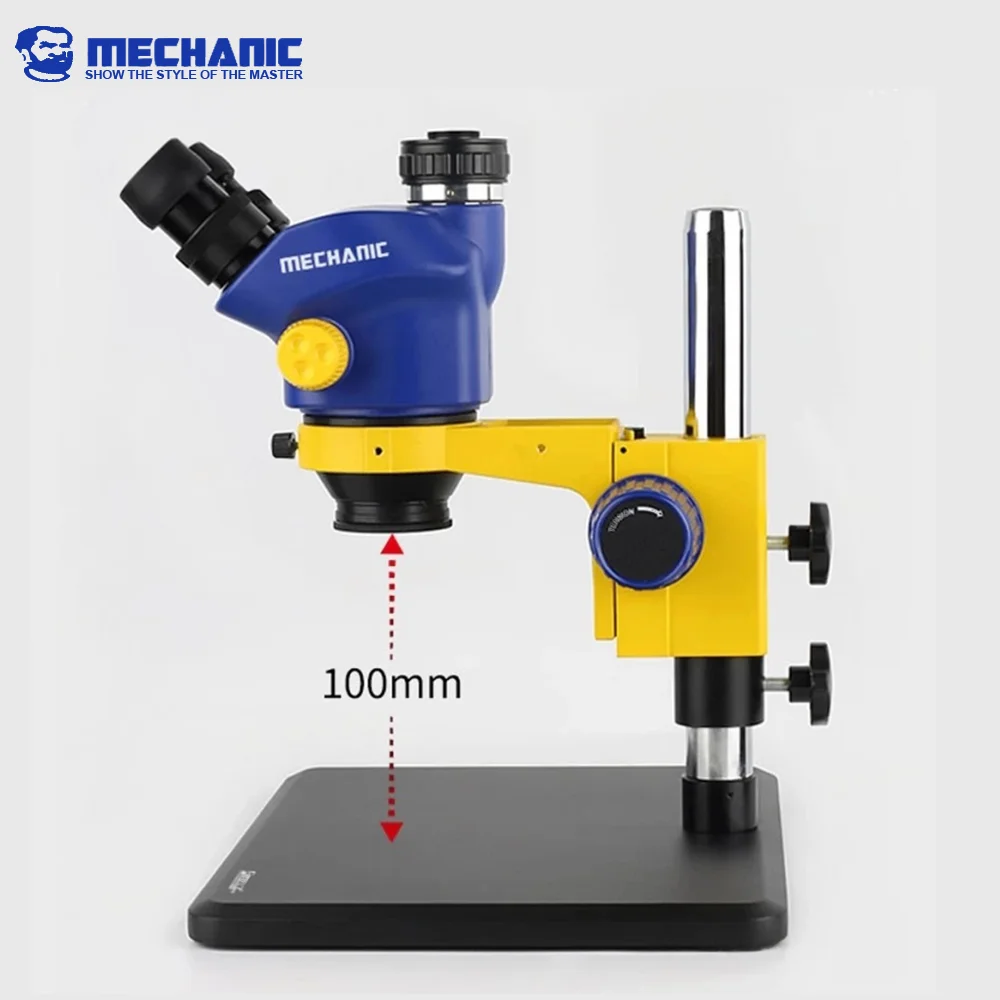

* Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
Magnification:7X-50X

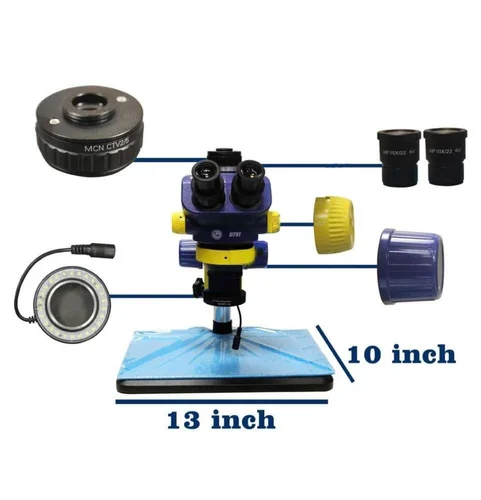

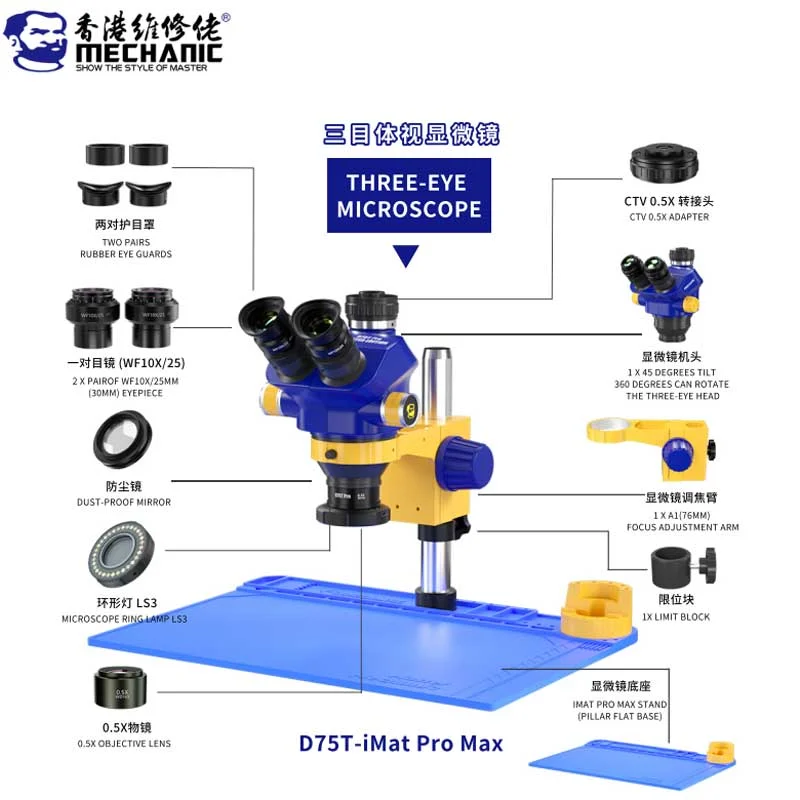

Packing Details :-

  • 1 Rod
  • 1 iMat Pro Max Base
  • 1 CTV lens
  • 1 Ring Light
  • 1 Limits Block
  • 1  Microscope Head
  • 1 0.5x Objective Lance
  • 1 Extra protective Lance
  • 2 Eyepiece Lenses WF/10X/25
  • 1 Microscope Dust Protective Cover
  • 1 Pair (MOS038)Slant Horn-Shaped Eye Mask
  • 1 Pair Small Eyepiece Ruber





Ask for more Info

Product details

  • Mechanic D75t Pro Master Edition Microscope
  • * Product Name: Industrial grade trinocular stereo microscope
  • * Product Model: D75T-PRO MASTER EDITION
  • * Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)
  • * Eyepiece: 0.5X CTV HD electron microscope
  • * Objective Len: 0.7X-50X
  • * Eyepiece: WF10X25 High Eyepiece
  • * Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
  • * Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
  • * Focusing bracket: Adjustable elasticity of focusing handwheel, lifting range 50mm
  • * Base Size: 195*256*20mm
  • * LED light source: High brightness cold white light source, can be adjusted freely
  • * Applicable Fields: Teaching Demonstration, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection
